Kynshi Stage-I Hydroelectric Project (270MW)
Client:
Athena Kynshi Power Private Limited
Services:
Concept to Commissioning Services including Pre-Feasibility Studies, Pre-Construction Stage Investigations, Preparation of Detailed Project Report, Environmental Studies including EIA & EMP Reports, Preparation of Tender drawings and Tender documents, assistance in Bid award of EPC contract, acquisition of all statutory and non-statutory clearances, Detailed Design, Construction Drawings and Project Management services.
Details of the Project:
|
Location
|
West Khasi Hills District, Meghalaya
|
|
Total Catchment area
|
615.40 km2
|
|
Installed Capacity
|
2 x 135 MW = 270 MW
|
|
Diversion Tunnel
|
4m diameter horse shoe shaped of length 425m
|
|
Dam
|
Concrete Gravity Dam, Height 59m above deepest foundation
|
|
Spillway
|
Sluice type spillway with radial gates, Capacity 6900 cumecs
|
|
Head Race Tunnel
|
Horse Shoe shaped, 4.5 m diameter, Length 6340.0m
|
|
Pressure Shaft
|
One no, 3.6 m diameter, 980.0 m long circular pressure shafts including a 396m vertical shaft bifurcated to two nos., 2.60 m diameter, 55 m average length to feed two unit of turbines
|
|
Penstock
|
One 750.0m circular penstock of diameter 3.6m
|
|
Tailrace Tunnel
|
2 nos. 55 m long from machine to junction and 1 no. 2500.0m long 5.25 m diameter tail race tunnel from junction to tailrace outfall at left bank of Kynshi river
|
|
Powerhouse
|
Underground powerhouse on left bank of size 86.75m (l) x 21.0m (w) x 40.0m (h) and Transformer Cavern
|
|
Turbine
|
Pelton, 2units of 135 MW each
|
Present Status of the Project:

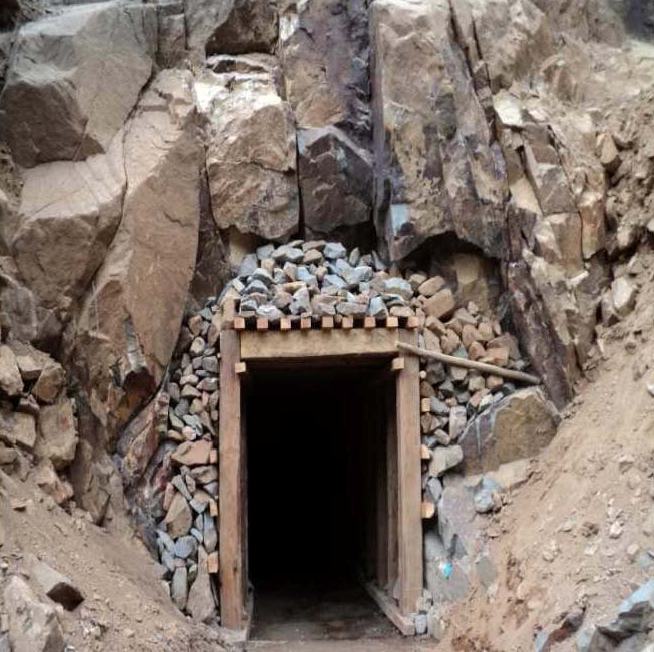

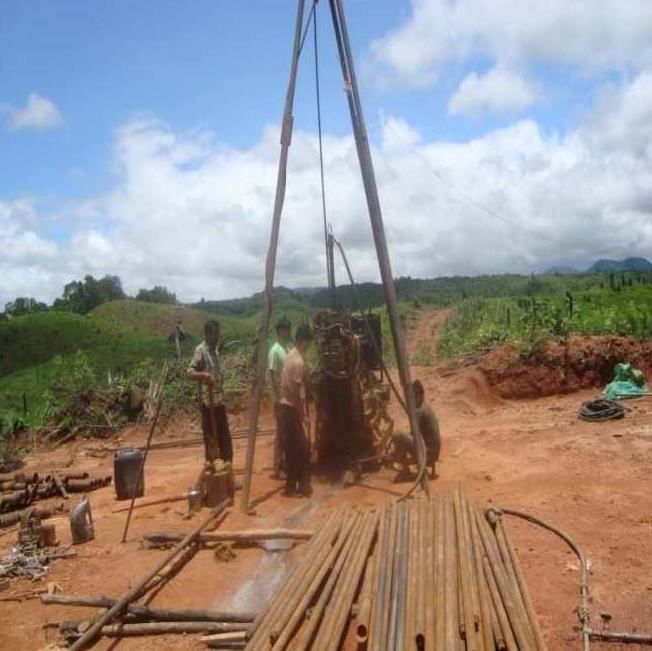

At present the Survey and Investigation works are going on.
The target for submission of Detailed Project Report is scheduled in the month of March 2012.
|
