| PATIKARI HYDRO ELECTRIC PROJECT (2 X 8 MW) |
 |
| Developer: |
| Patikari Power Private Limited |
 |
Scope & Services:
E&M Works:
EPC Contact for the design, manufacture, supply, erection, testing and commissioning of E&M (Power Plant) equipment.
O&M supervision.
Main Civil Works:
Detailed Design,
Construction Supervision &
Project Management |
|
| Details of the Project: |
| |
| Location: |
Mandi Dist, Himachal Pradesh |
| River: |
Bakhli Khad, tributary of Beas River |
| Catchment area: |
216 km2 |

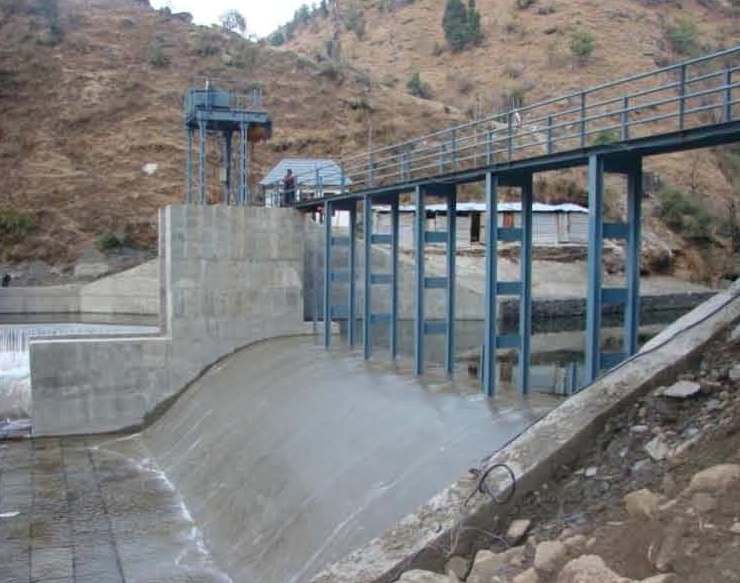

| Diversion Weir: |
27 m long Ogee type diversion weir |
| Desilting chambers: |
2 no, 4.5 m width, 55 m long surface type |
| Head Race Tunnel: |
1.8 m wide, 2.1 m high, 3614m long, D-shaped |
| Surge Shaft: |
One number 6.0 m dia |
| Penstock: |
One number 1.3 m dia, 715m long |

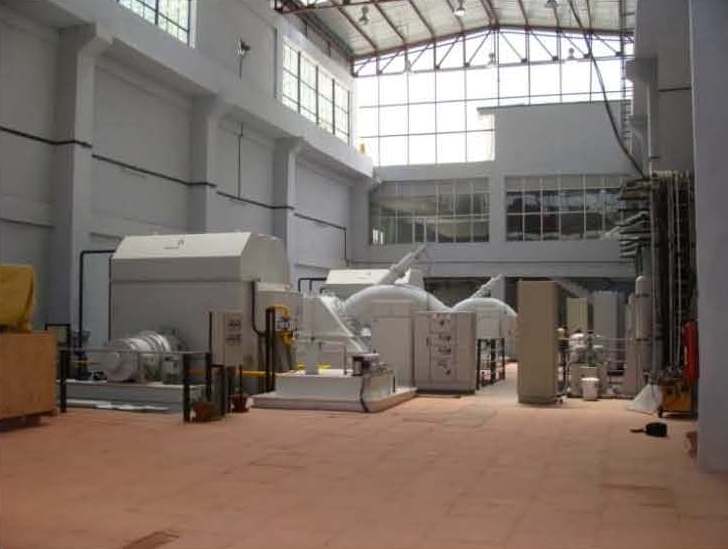

| Power House: |
45m X 21.5 m, surface type |
| E&M Equipment: |
Two number, 2 Jet, Horizontal Pelton Turbines operating at the rated net head of 356.3m, coupled to Synchronous Generators, each delivering 8 MW plus 15% continuous overload at its terminals. |
Present Status of the Project:
All Project components were successfully completed well with in the specified Time Schedule. First Generating Unit was commissioned on 18th January 2008 and the Project was accorded the Commercial Operation (COD) w.e.f.6th February 2008.
Both Units have been operating satisfactorily since their commissioning and cumulatively achieved more than 100 % of design energy generation during the first three quarters of the current financial Year 2008 - 09.
|
|

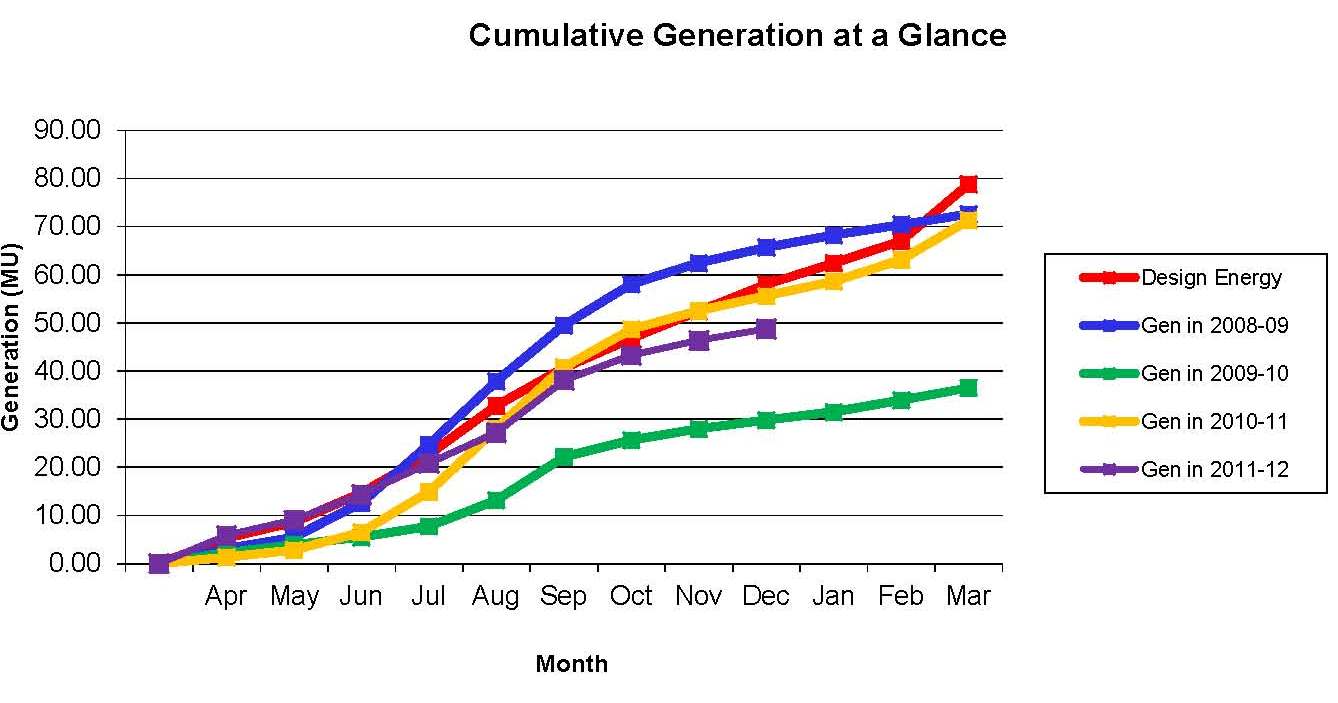

Energy Generation during first three quarters of Year 2008-09 :-
|
Month
|
Design Energy ( MUs)
|
Actual Energy
Generated(MUs)
|
Actual Vs
Design Energy (%)
|
|
Apr-08
|
5.26
|
3.08
|
58.56
|
|
May-08
|
3.35
|
2.36
|
70.45
|
|
Jun-08
|
6.03
|
7.2
|
119.40
|
|
Jul-08
|
8.02
|
12.02
|
149.88
|
|
Aug-08
|
10.12
|
13.21
|
130.53
|
|
Sep-08
|
7.82
|
11.61
|
148.47
|
|
Oct-08
|
6.17
|
8.6
|
139.38
|
|
Nov-08
|
5.7
|
4.34
|
76.14
|
|
Dec-08
|
5.51
|
3.22
|
58.44
|
|
Total
|
57.98
|
65.64
|
113.21
|
|
| |
