| SAINJ HYDRO ELECTRIC PROJECT (2 X 2.5 MW) |
|
| Client: |
| Sainj Hydro Power Private Limited |
 |
Services:
Preconstruction Investigations
Review of DPR
Tender drawings
Technical Specifications
Detailed Design
Construction Supervision
|
|
| Details of the Project: |
| |
| Location: |
Shimla Dist, Himachal Pradesh |
| River: |
Sainj Khad, tributary of River Yamuna |
| Project Type: |
Run of the River |
| Catchment area: |
170.8 km2 |

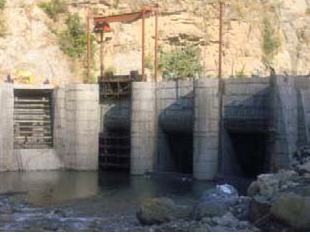

| Diversion Structure: |
RCC Raft type Gated Barrage Structure |
| Desilting chambers: |
2 no Rectangular hopper type, 3.5m wide, 5.25m depth and 60 m long |
| Head Race Tunnel: |
1.8 m X 2.1 m , 1684 m long, D-shaped |
| Surge Shaft: |
One number 5.0 m dia, 18 m long |

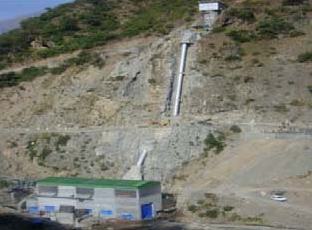

| Penstock: |
One number 1.5 m dia, 159.5 m long |
| Power House: |
20m X 28 m, surface type |

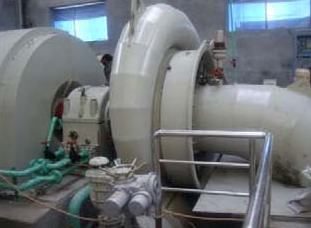

| E&M Equipment: |
Two number, Horizontal Francis Turbines designed for the net head of 90m coupled to Synchronous Generators to generate 2.5 MW each |
|
| |
 |
 |
| |
| |
|
 |
|
|
